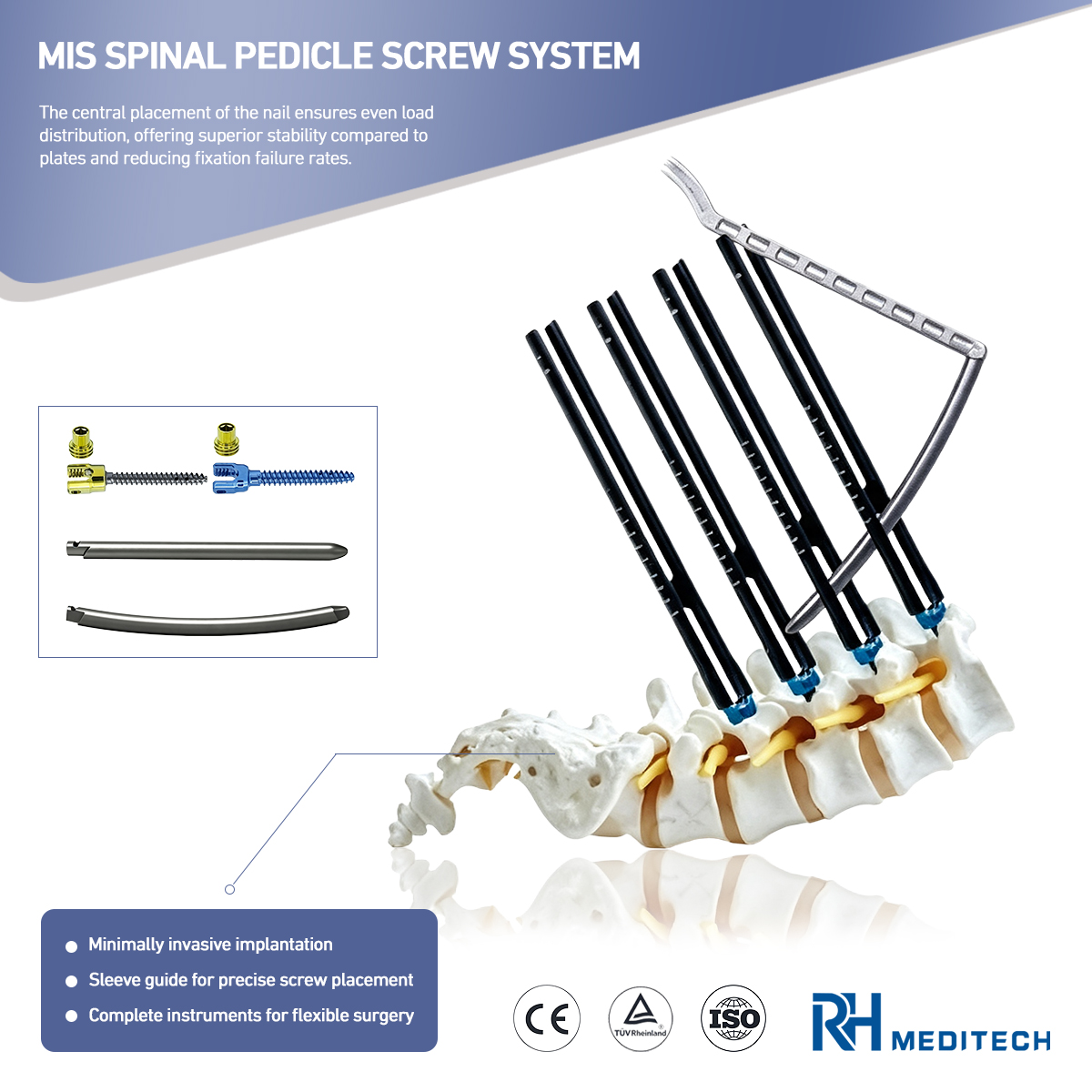

5.5 mm MIS Spinal Pedicle Screw System

RHmeditech’s 5.5 mm MIS Spinal Pedicle Screw System combines cannulated monoaxial and polyaxial screws, 5.5 mm rods, locking components and dedicated instruments for minimally invasive posterior thoracolumbar fixation.

Material：

Medical-Grade Titanium Alloy

Application：

Minimally Invasive Posterior Thoracolumbar Fixation

Size Range：

Screw Lengths: 30–55 mm | Rod Lengths: 40–120 mm

Screw Diameter：

Ø 5.5 / 6.0 / 6.5 / 7.0 / 7.5 mm

Surface Treatment：

Surface Finish Options Available

15+

Years Experience

ISO 13485

Quality System

OEM/ODM

Available

PRODUCT OVERVIEW

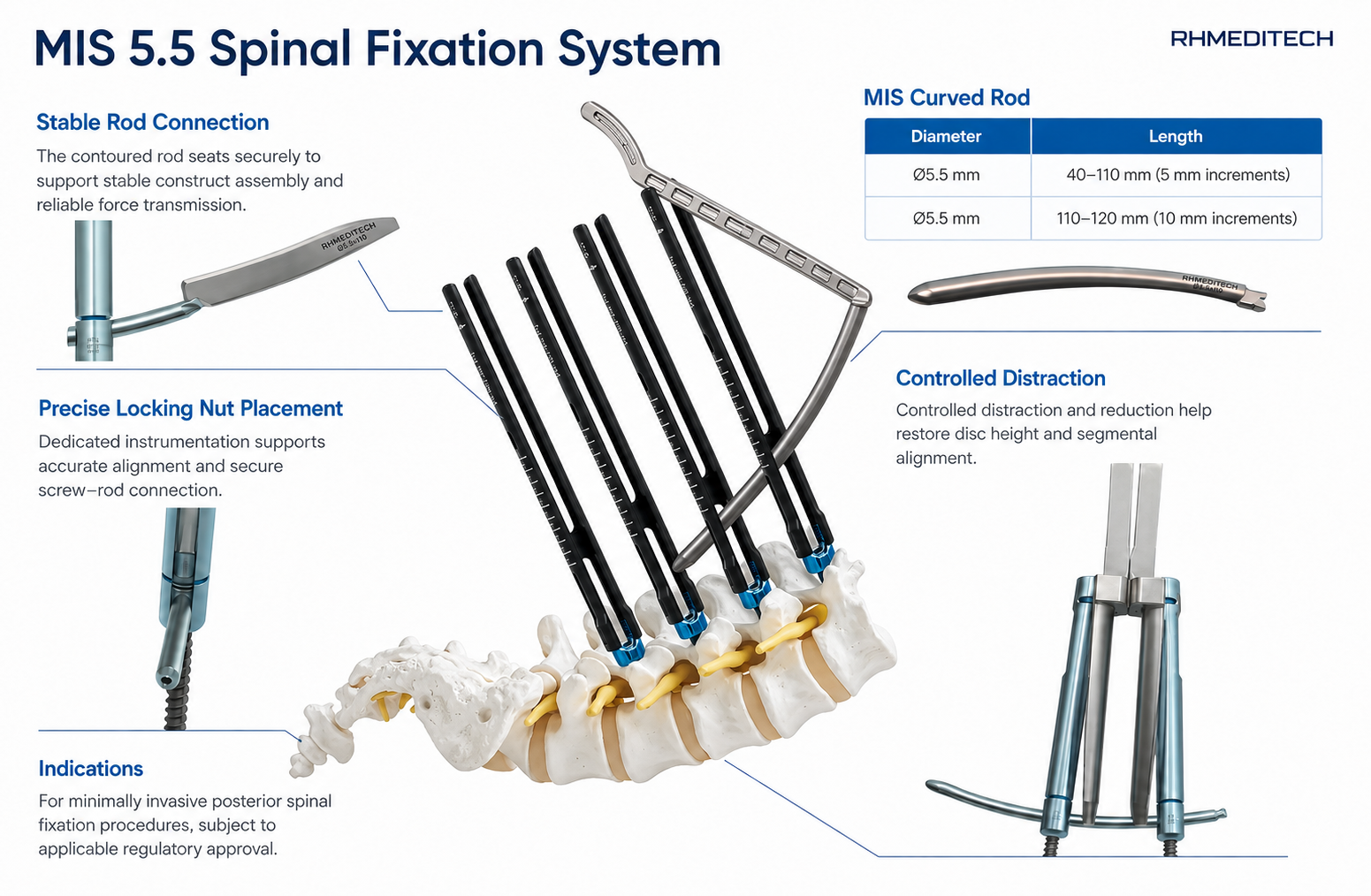

Percutaneous Thoracolumbar Fixation Built Around a 5.5 mm Rod Platform

The RHmeditech 5.5 mm MIS Spinal Pedicle Screw System provides a coordinated implant and instrument solution for posterior thoracolumbar stabilization through a minimally invasive approach.

Cannulated pedicle screw options support guidewire-assisted placement, while monoaxial and polyaxial head configurations provide flexibility for different construct requirements. Multiple screw diameters, screw lengths and rod lengths allow the system to be configured for varied anatomies and fixation levels.

A matching minimally invasive instrument set supports screw insertion, rod passage, reduction and final locking. Component selection, compatibility and clinical use must follow the approved instructions for use and applicable requirements in the destination market.

DESIGN FEATURES

Designed for dependable cervical fixation

Focused design features support surgical workflow, system versatility and consistent product performance.

Guidewire-Assisted Screw Placement

Cannulated pedicle screws and compatible insertion instruments support guidewire-assisted placement through minimally invasive working corridors.

5.5 mm Rod Platform

The coordinated 5.5 mm rod platform is available in multiple lengths to support different fixation levels and construct configurations.

Flexible Screw Configurations

Monoaxial and polyaxial screw options provide flexibility for alignment, rod seating and construct assembly according to procedural requirements.

Coordinated MIS Instrumentation

Dedicated instruments support pedicle preparation, screw delivery, rod passage, reduction and controlled final locking during minimally invasive procedures.

TECHNICAL DATA

Technical Specifications

Available configurations and dimensions can be selected according to clinical requirements and regional product availability.

Product Type

Minimally Invasive Posterior Pedicle Screw Fixation System

Fixation Region

Thoracolumbar Spine

Rod Diameter

Ø 5.5 mm

Pedicle Screw Options

Cannulated Monoaxial and Polyaxial Screws

Screw Diameter Range

Ø 5.5–7.5 mm

Screw Length Range

30–55 mm

Rod Length Range

40–120 mm

Implant Material

Medical-Grade Titanium Alloy

INTENDED APPLICATION

Posterior Thoracolumbar Stabilization Through a Minimally Invasive Approach

The system is designed for posterior non-cervical pedicle screw fixation as an adjunct to fusion where a minimally invasive approach is clinically appropriate. Potential application areas may include thoracolumbar instability, spondylolisthesis, selected fractures and revision procedures. Final patient selection, fixation levels and construct configuration must be determined by qualified surgeons according to the approved instructions for use and applicable local regulations.

Lumbar Spondylolisthesis

Degenerative Lumbar Instability

Spinal Stenosis with Instability

Thoracolumbar Fracture Fixation

FOR MEDICAL PARTNERS

OEM, Private Label & Supply Support

Build or expand your orthopedic product portfolio with flexible branding, packaging, documentation and coordinated instrument set support.
